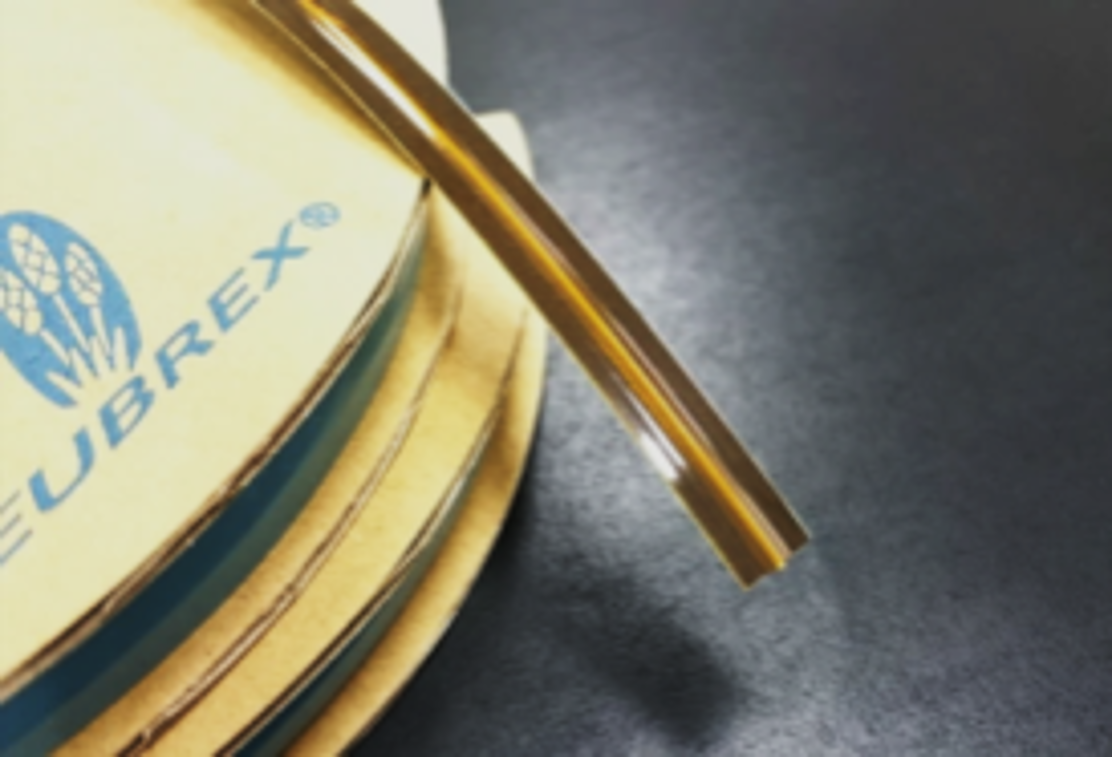

Fiber Tape
FN-SSL-3
Features
Two single-mode optical fibers
Easy to install: just stick tape to surface
Temperature range: -20 to 60 C
Minimum bending radius: 15 mm
The thickness of fibers supporting back-sheet is less than 1.0 mm. It allows the sensing fibers to be attached to an object, while providing a medium for transferring strain and temperature between object and fibers.
The FN-SSL-3 surface film covers fibers and protects them from damage. This film also supports the fibers while bending. The minimum bending radius is 15 mm, making it suitable for all types of objects and installation schemes.
The FN-SSL-3 surface-tape sensing fiber is easy to use; just peel off the release liner and attach the fiber to the object. Specially designed adhesive starts solidifying after sticking and pressing the tape. It becomes ready for measurement in 24 hours. The adhesive of the tape is designed for many years of use.
Structure Diagram
Specification
| FN-SSL-3 | |
| Optical fiber type | 10 / 125 μm SMF |
| Number of Optical fibers | 2 |
| Attenuation | < 0.5 dB/km |
| Bending radius | > 15 mm |
| Dimension (W x H) | 8.0 x 1.0 mm |
| Length (standard, per reel) (custom made, per reel) |
15 m < 100m |
| Weight | 3.5 g /m |
| Operating temperature | -20 to +60 ℃ |
| All specifications above are subject to change without notice. | |
