Embossed Cable

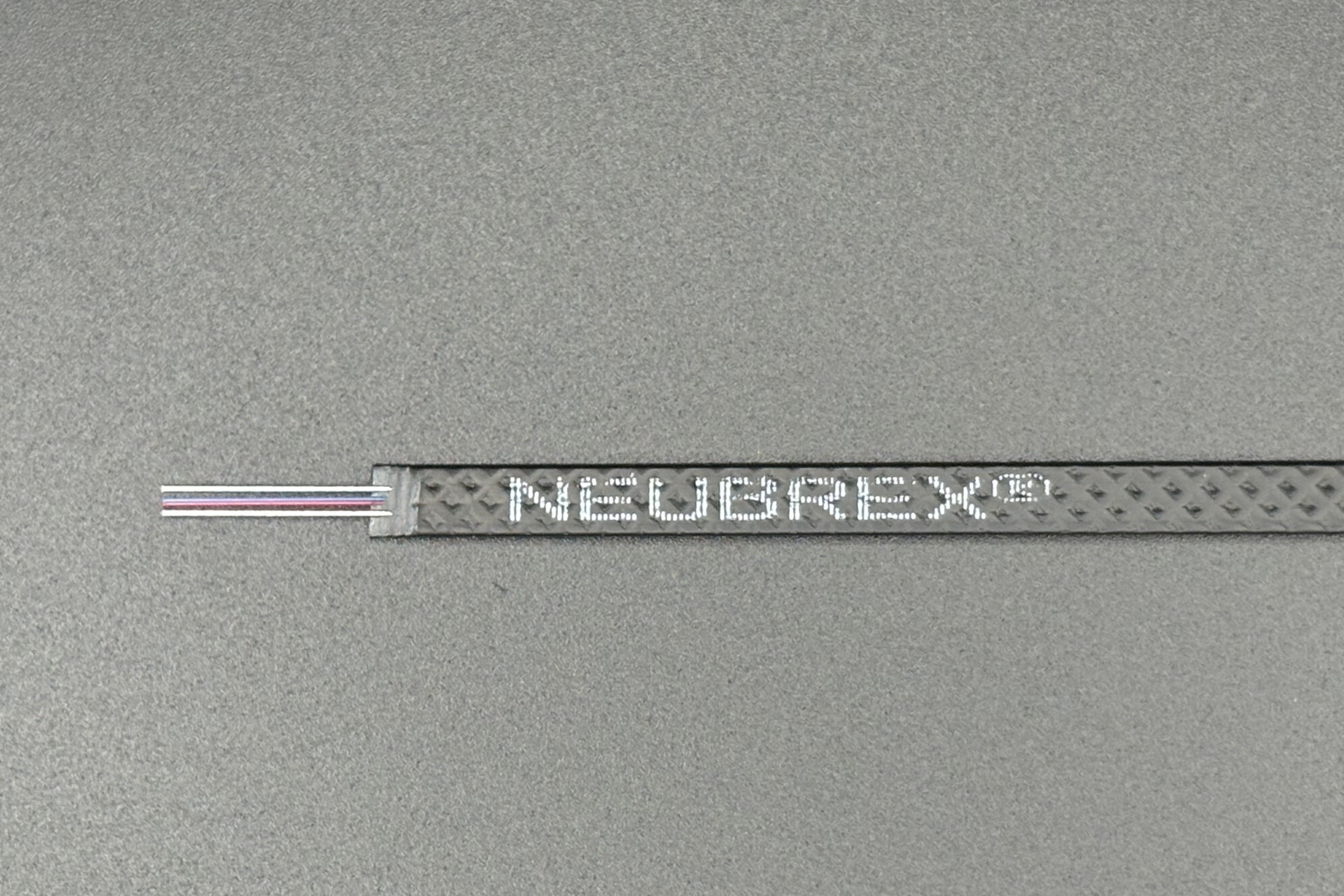

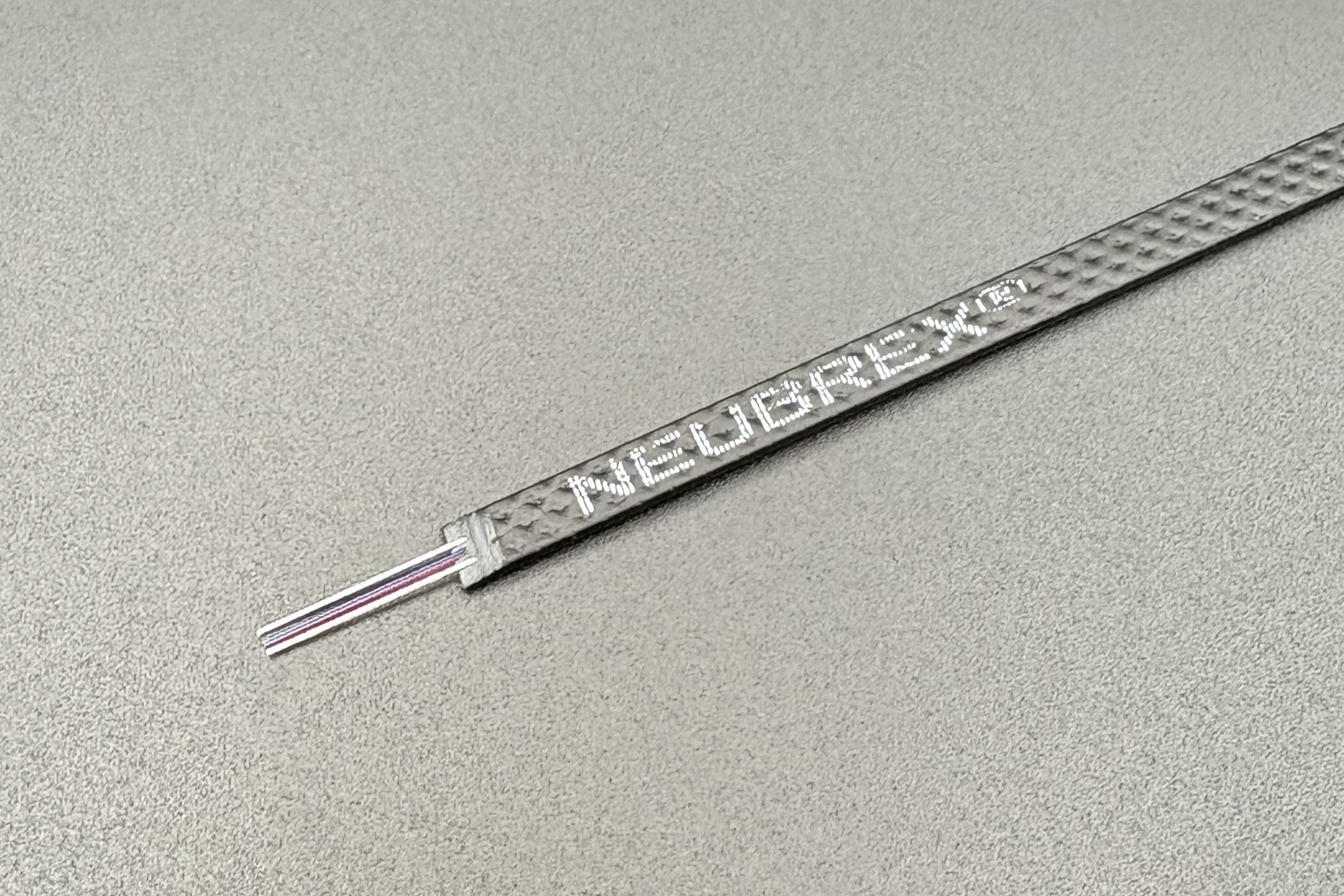

The FN-EBSS-01 is a strain and/or temperature sensing cable designed for distributed fiber optics sensing. It offers excellent, linear responses to mechanical or thermal loads, providing accurate strain or temperature values along the cable. By incorporating two singlemode optical fibers in the center of the cable, a loop structure of optical fiber can be created to realize BOTDA measurement with a single cable, or provides redundancy, if required.

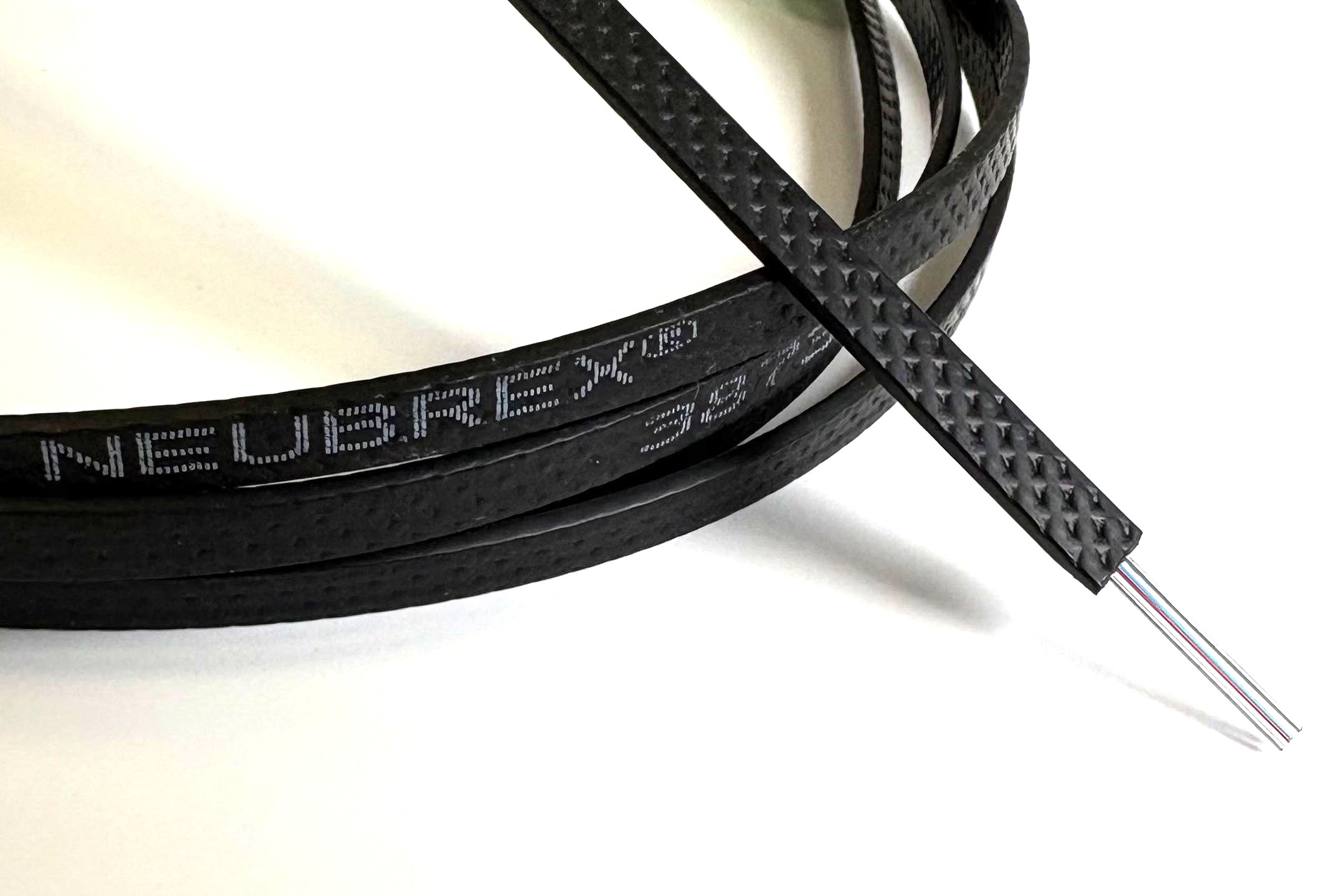

Its embossed surface enables very good adhesion to measured object, preventing any slippage. In addition, two strength members provide a tensile strength up to 40 kg force.

The resin sheath of FN-EBSS-01 is flexible and easy to bend. Optical fibers can be easily extracted for splicing. The length marks on cable make the installation and position identification easy and efficient.

The FN-EBSM-01 is a strain and temperature sensing cable designed for distributed fiber optics sensing. It offers excellent, linear responses to mechanical and/or thermal loads, providing accurate strain or temperature measurements. By incorporating one singlemode and one multimode optical fibers in the center of the cable, it allows one not only to obtain very accurate strain and temperature measurements, but also to perform a tempearuture compensation.

Its embossed surface enables very good adhesion to measured object, preventing any slippage. In addition, two strength members provide a tensile strength up to 40 kg force.

The resin sheath of FN-EBSM-01 is flexible and easy to bend. Optical fibers can be easily extracted for splicing.The length marks on cable make the installation and position identification easy and efficient.
