NEUBRESCOPETM

Lineup

We are proud to announce a new series on NEUBRESCOPE systems.
The wide range of available resolutions and accuracy will address all of your

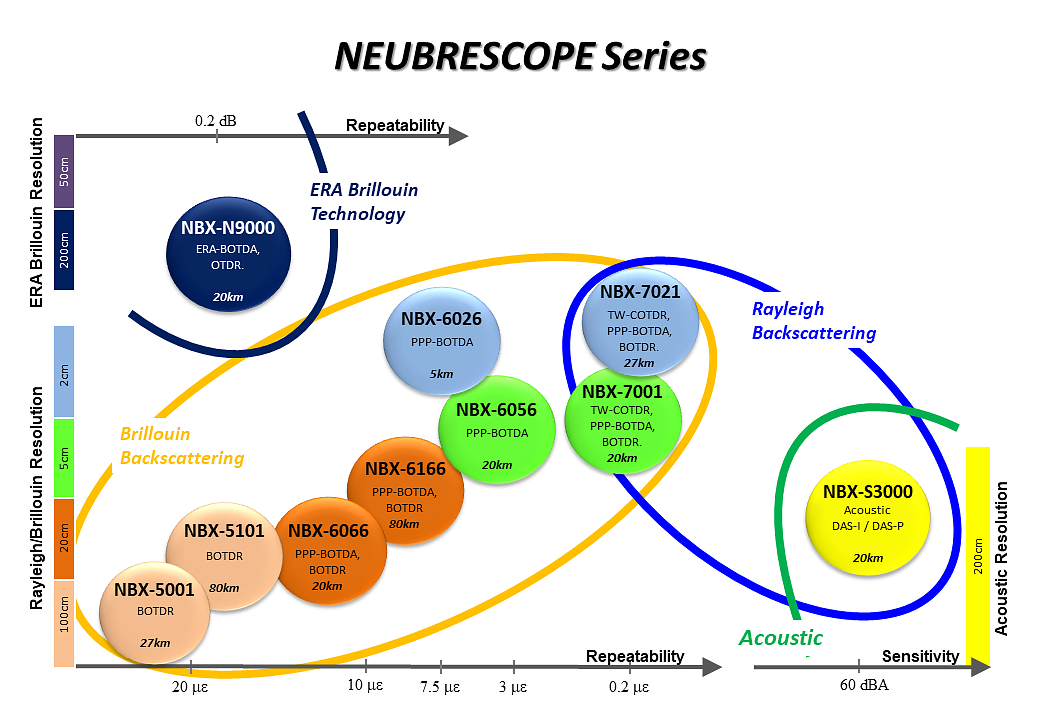

monitoring needs.Click on plot or use links below to obtain detailed information
on specific models.






NBX-7000 Series,  Brillouin+Rayleigh Hybrid Technology.
NBX-7031 TW-COTDR / PPP-BOTDA / BOTDR / COTDR
TW-COTDR enhanced model
Resolution: 2cm. Max. Distance: 27km.
Accuracy: 10με/0.5°C(Hybrid mode). 10nε/0.001°C(TW-COTDR)




NBX-8000 Series,  Phase Shift Pulse BOTDR Technology.
NBX-8200 PSP-BOTDR
Resolution: 20cm. Accuracy: 5με/0.25°C. Max. Distance: 10km.



NBX-S4000 Series,  DAS system with TGD-OFDR Technology.
NBX-S4000A TGD-OFDR Basic model
Resolution: 2.8m. Dynamic Range: 38dB. Max. Distance: 50km.
NBX-S4000B Please contact us for the details.
NBX-S4000C Please contact us for the details.



NBX-6000 Series,  Pulse Pre-Pump Brillouin Technology
NBX-6026 PPP-BOTDA
Resolution: 2cm. Accuracy:7.5με/0.35ºC. Max. Distance: 5km.




NBX-6056 PPP-BOTDA
Resolution: 5cm.  Accuracy: 7με/0.3°C.  Max. Distance: 20km.




NBX-6066 PPP-BOTDA / BOTDR
Resolution: 10cm.  Accuracy: 20με/1.0°C.  Max. Distance: 25km.




NBX-6166 PPP-BOTDA / BOTDR / COTDR
Resolution: 10cm.  Accuracy: 20με/1.0°C.  Max. Distance: 80km.



NBX-5000 Series,  Primary BOTDR
NBX-5001 BOTDR
Resolution: 20cm.  Accuracy: 50με/2.5°C.  Max. Distance: 27km.




NBX-5101 BOTDR / COTDR
Resolution: 50cm.  Accuracy: 50με/2.5°C.  Max. Distance: 80km.




NBX-N9000,  ERA-Brillouin Technology.
NBX-N9000 ERA-BOTDA / Conventional OTDR
Resolution: 2m. Accuracy: 0.2dB. Max. Distance: 20km.




NBX-1000 Series,  Optical Switch for NEUBRESCOPE
NBX-1000 Optical Switch Unit specially designed for NEUBRESCOPE
1x8 / 2x8 / 1x16 / 2x16 Channels available




NEUBRESCOPE series Catalog Download

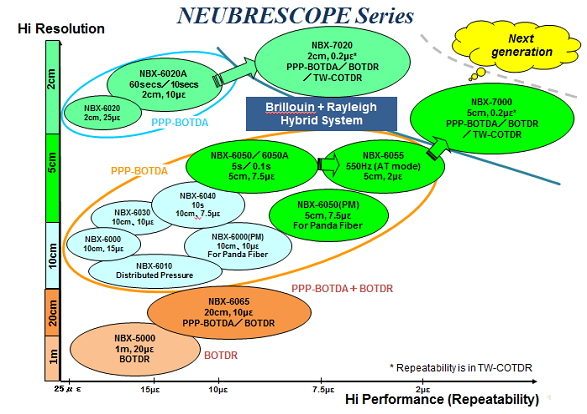

End of sale
NBX-6000 / Standard BOTDA

NBX-6000PM / Polarization Maintaining BOTDA


NBX-6010 / Pressure measurement BOTDA


NBX-6020 / High-resolution BOTDA
NBX-6020A / High-speed BOTDA
NBX-6030 / High-accuracy BOTDA
NBX-6040 / High-speed & high-accuracy BOTDA

NBX-6050A / High-speed & high-accuracy BOTDA


NBX-6050PM / Polarization maintaining BOTDA
NBX-6055PM / Polarization maintaining BOTDA
