FutureNeuro™
Embossed Sensing Cable Catalog
| Type |
Strain Sensing (surface and embeddding installation) |
| Series |
FN-SILL-* |
| Model Number |
FN-SILL-3 |
| The number of core fibers (A) |
2 |
| Nominal temperature range |
from -20 to +80 degrees Celsius |
| Application |
Concrete / Steel structure / General |
| Tension Member (B) |
OD0.3mm SUS304 WBP |
| Fixing (C) |
Polyolefin Elastomer 4.3 x 1.7mm |

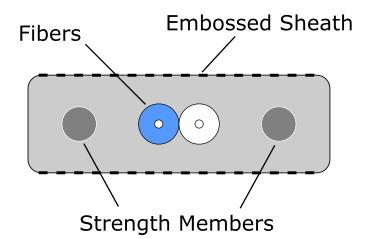

| Structure |  |
| Picture |  |
